FLEXIBLE RUBBER JOINT

Flexible Rubber Joint Single Bellow JIS 10K Type Oflex
Flexible Rubber Joint Single Bellow JIS 10K Type Oflex
Flexible Rubber Joint Single Bellow JIS 10K Type Oflex
Flexible Rubber Joint Single Bellow JIS 10K Type Oflex

FLEXIBLE RUBBER JOINT SINGLE BELLOW JIS 10K TYPE OFLEX

FLANGE WITH MILD STEEL AND DUCTILE IRON IN JIS 10K, ANSI 150, PN 16 ARE STANDARD. FOR OTHER FLANGES. FLANGE MATERIAL CAN BE CHANGE TO SUS304 AND SUS316 FLANGE MATERIAL FOR ANSI 150 32MM IS MILD STEEL ONLY
Kode
ITM00493
Merk
Tozen

Deskripsi Produk

JUAL FLANGE WITH MILD STEEL AND DUCTILE IRON IN JIS 10K, ANSI 150, PN 16 ARE STANDARD. FOR OTHER FLANGES.
FLANGE MATERIAL CAN BE CHANGE TO SUS304 AND SUS316
FLANGE MATERIAL FOR ANSI 150 32MM IS MILD STEEL ONLY

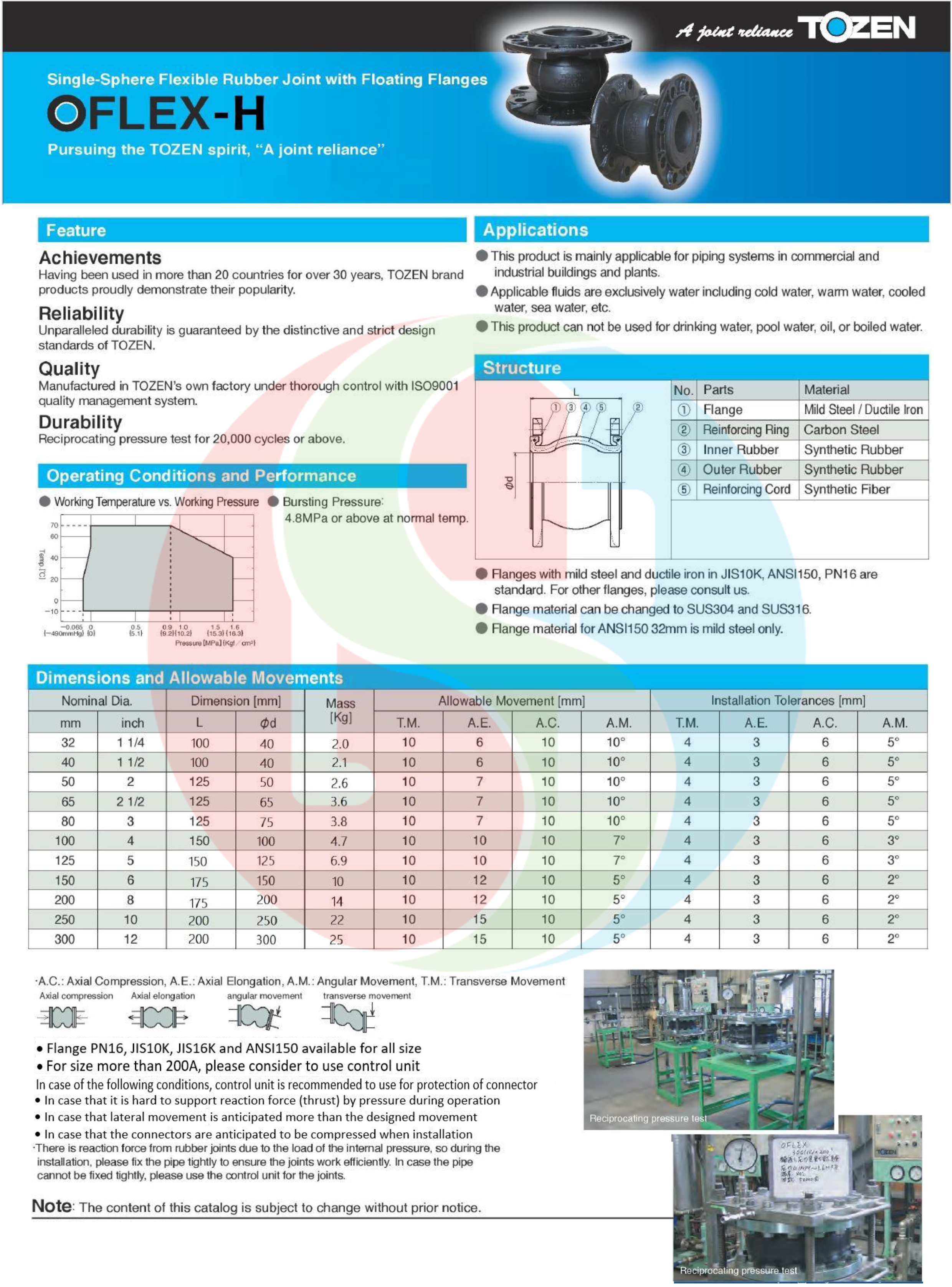

No Parts Materials
1 FLANGE MILD STEEL / DUCTILE IRON
2 REINFORCING RING CARBON STEEL
3 INNER RUBBER SYNTHETIC RUBBER
4 OUTER RUBBER SYNTHETIC RUBBER
5 REINFORCING CORD SYNTHETIC FIBER

MANUFACTURE : JAPAN
